SM-7204 Personal Silica Monitor

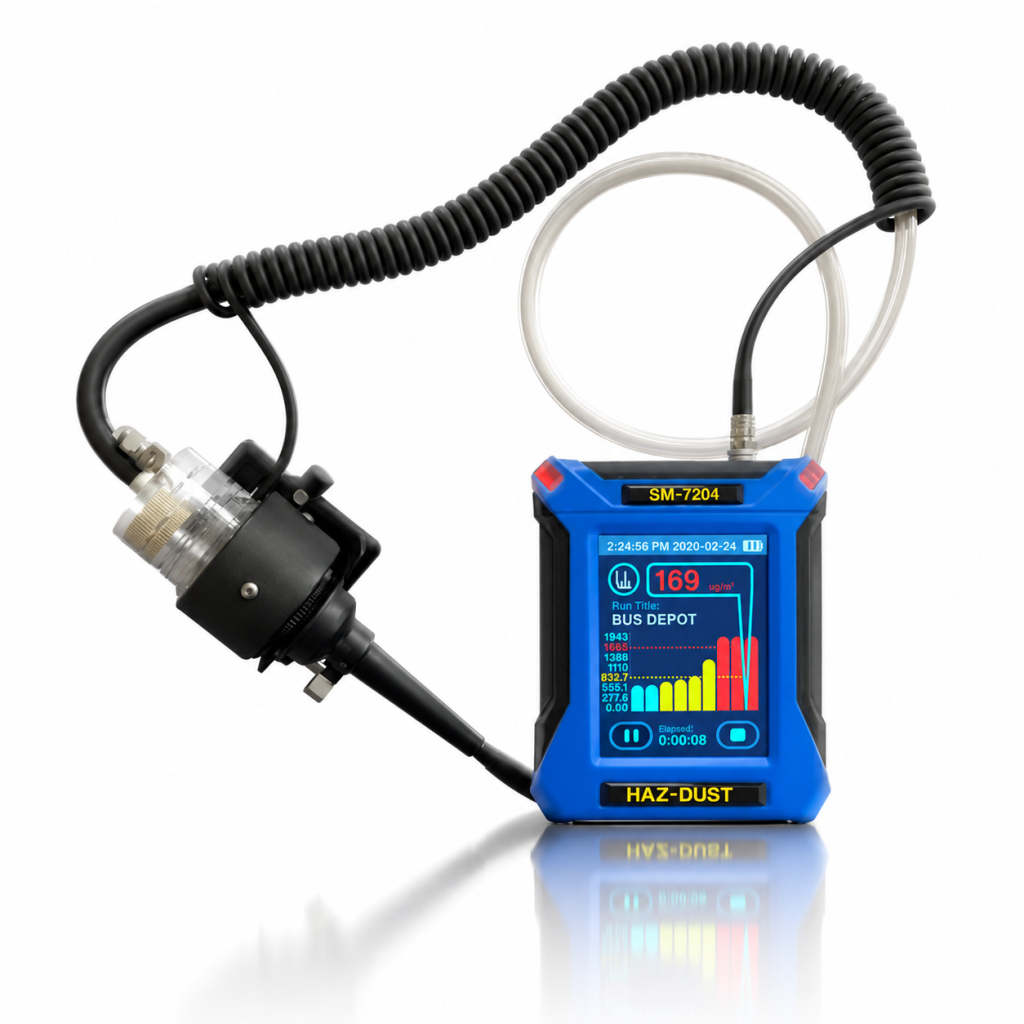

SM-7204 Real-Time Personal Silica Monitor The SM-7204 air sampler is mounted in the OSHA defined breathing zone allowing for a more accurate representation of workers exposure. Having a Real-Time Optical Sensor placed in the breathing zone, reduces inner wall dust deposition, experienced by other Real-Time optical devices on the market. In addition, having a gravimetric filter cassette directly behind the optical sensor allows for maximum particle deposition on the filter and thus a more accurate representation of worker exposure. The SM-7204 offers Real-Time Concentration Readings and the DustComm Software allows for graphical analysis and comprehensive time history reporting.

Resources

Video Instruction
Brochure
Customer & Distributor Portal
Get a Quote for your Air Quality Needs

Applications



  • Survey tool for MSHA and NIOSH Compliance Programs

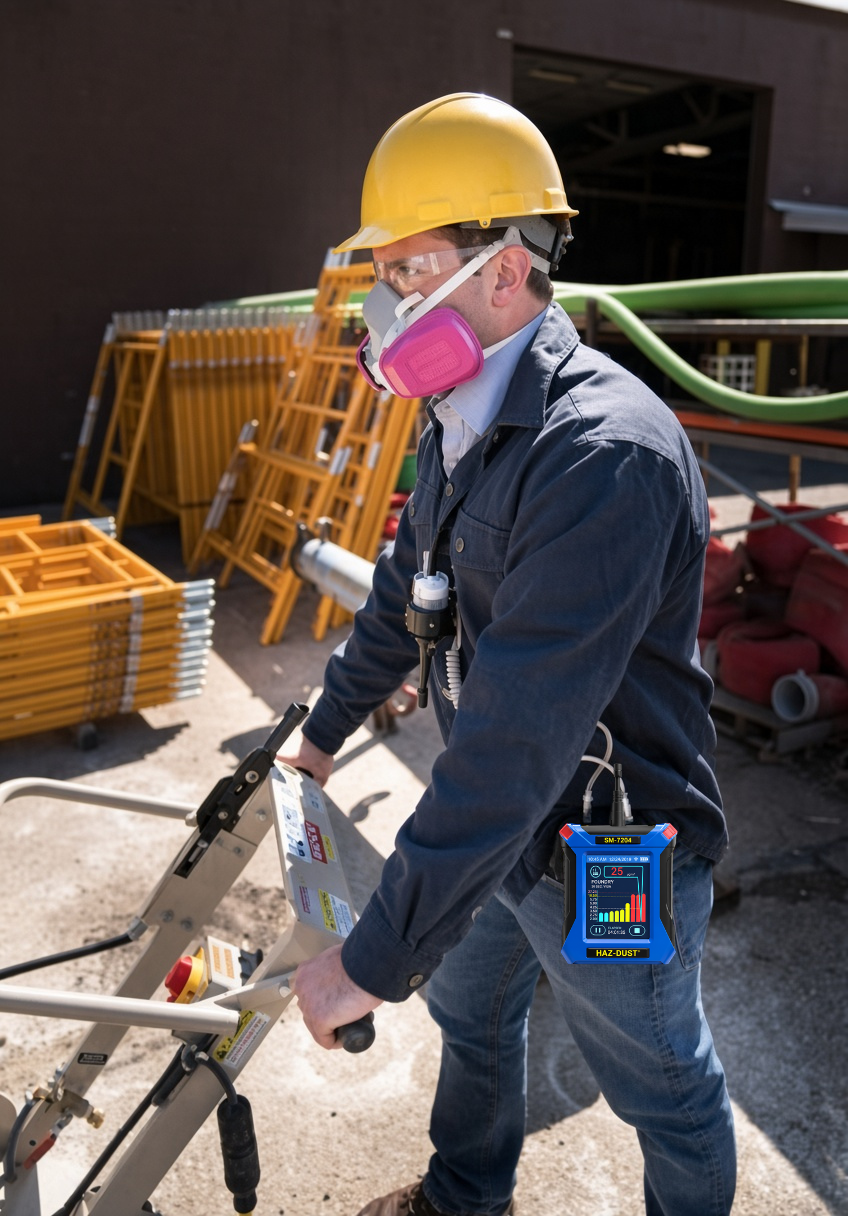

  • Foundry Work
  • Stone Cutting
  • Quarry Work
  • Tunneling
  • Rock Drilling
  • Any occupation which cuts, chips, drills, grinds silica into respirable size fractions

Features



  • Flow compensated pump
  • An optical sensor mounted in the OSHA defined breathing zone
  • Accepts any standard 27 or 25mm pre-loaded filter cassette
  • Validated sampler meets the ISO 7708 Standard
  • Easy to clean optical sensor with calibration span verification.
  • On screen programming for creating a unique aerosol library and data sets.

Specifications



Flow Compensated Sampling Flow Rate: The pump is capable to maintain flow within ±5% as follows: 1.0 Lpm up to 70 Inch H₂O; 2.5 Lpm up to 55 Inch H₂O, and 5.0 Lpm up to 20 inch H₂O.

Sampling Rate: 1 sec., 4 sec., 10 sec., and 60 sec.

Filter Cassette: Inline 37 or 25 mm preloaded filter cassette.

Sensing Range: 1-500,000ug/m³

Record Time: 1 second to 15 days

Data Storage: 43,200 data points

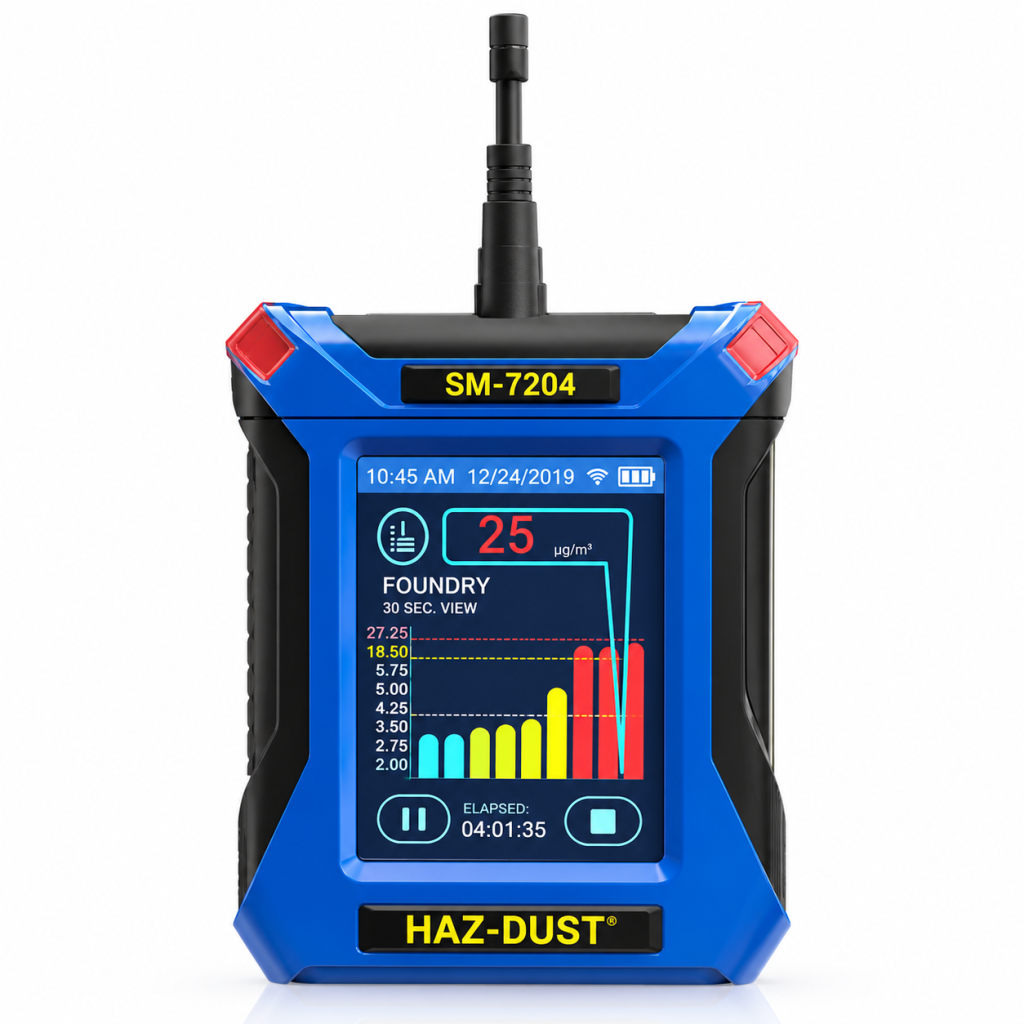

Display: Touch color display

Weatherproof Enclosure

Digital Output: Micro USB

Alarm Output: 90 db at 3 ft

Operating Temp: 0°C to 50°C

Battery: Lithium-ion

Operating Time: 22+ hrs @ 2LPM with IOM and no filter

Charge Time: 3 hours

Instrument Weight : 1.14lbs

Sensor Weight:  0.6lbs

Instrument Dimensions: 3.5″ x 2.25″ x 4.75″

Sensor Dimensions : 1.75″ x 1.5″
