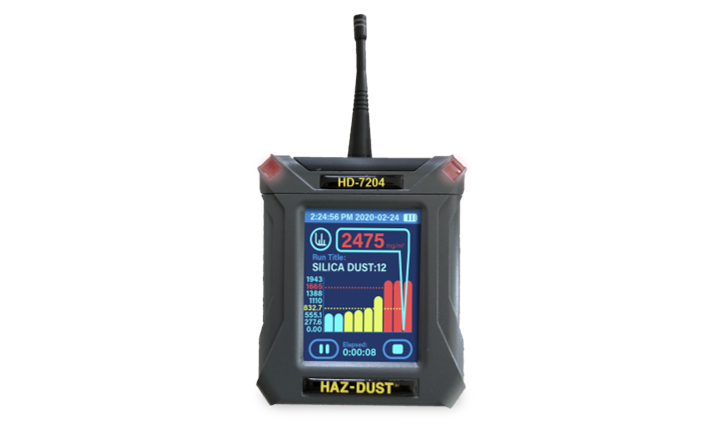

HD-7204 Personal Direct Reading Aerosol Monitor

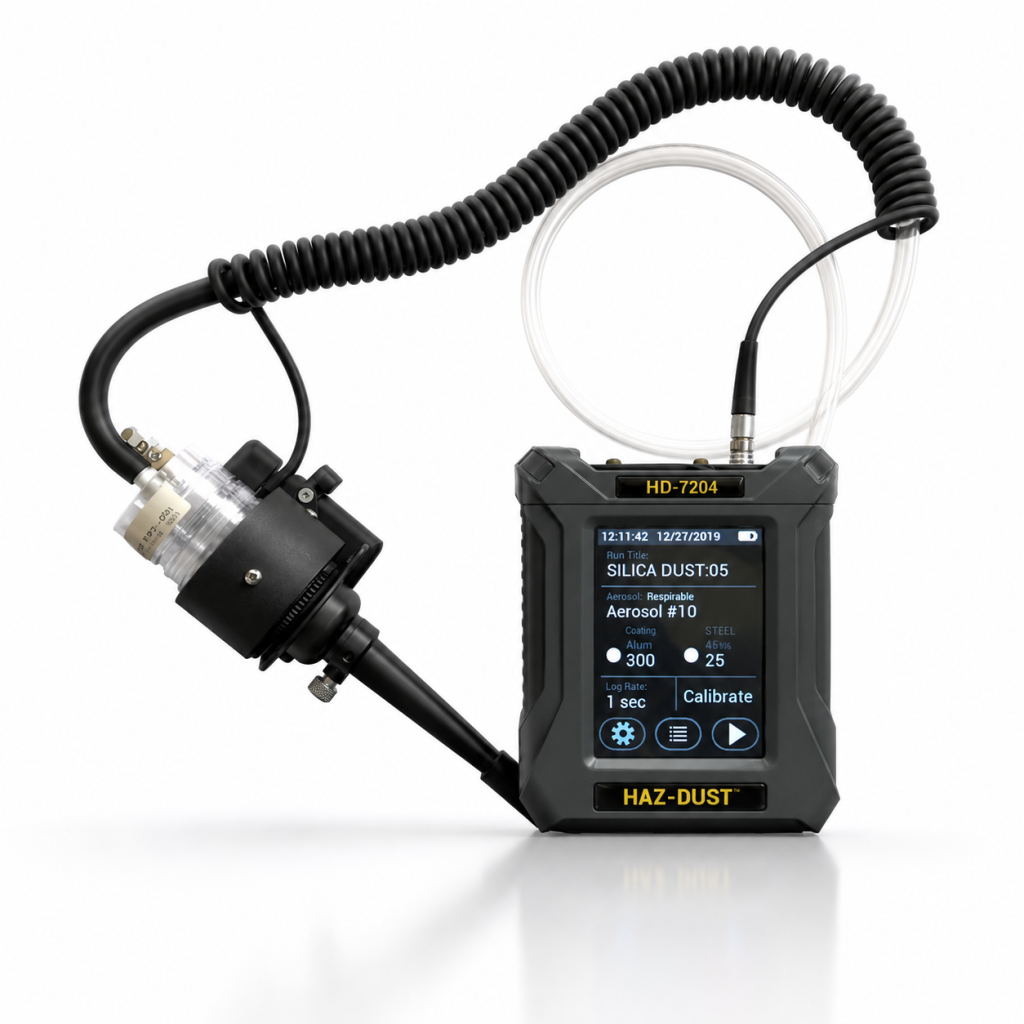

The all new Haz-Dust™ HD-7204 offers a flow compensated pump for compliance monitoring. The days of requiring two devices and co-locating a FRM filter cassette and real-time reading instrument are over! The HD-7204 offers a flow compensated pump with real-time capability. The sensor, which is mounted in the OSHA defined breathing zone, is sandwiched between the sampling inlet and a FRM filter cassette option.
Resources
Applications
- Air quality studies in occupational health and Industrial Hygiene
- Applications requiring a compliance monitor
- Evaluating work practices and controls
- Safety Audits
- Welding fume exposure
Features
- Flow compensated pump
- An optical sensor mounted in the OSHA defined breathing zone
- Accepts any standard 27 or 25mm pre-loaded filter cassette
- Validated sampler meets the ISO 7708 Standard
- Easy to clean optical sensor with calibration span verification.
- On screen programing for creating a unique aerosol library and data sets.
Specifications
Flow Compensated Sampling Flow Rate: The pump is capable to maintain flow within ±5% as follows: 1.0 Lpm up to 70 Inch H₂O; 2.5 Lpm up to 55 Inch H₂O, and 5.0 Lpm up to 20 inch H₂O.
Sampling Rate: 1 sec., 4 sec., 10 sec., and 60 sec.
Filter Cassette: 37mm/ or 25mm preloaded and weighted filter cassette
Sensing Range: 0.001-500 mg/m³ or 1-500,000 ug/m³
PM size Range: 0.1 to 100μm
Data Storage: 43,200 data points

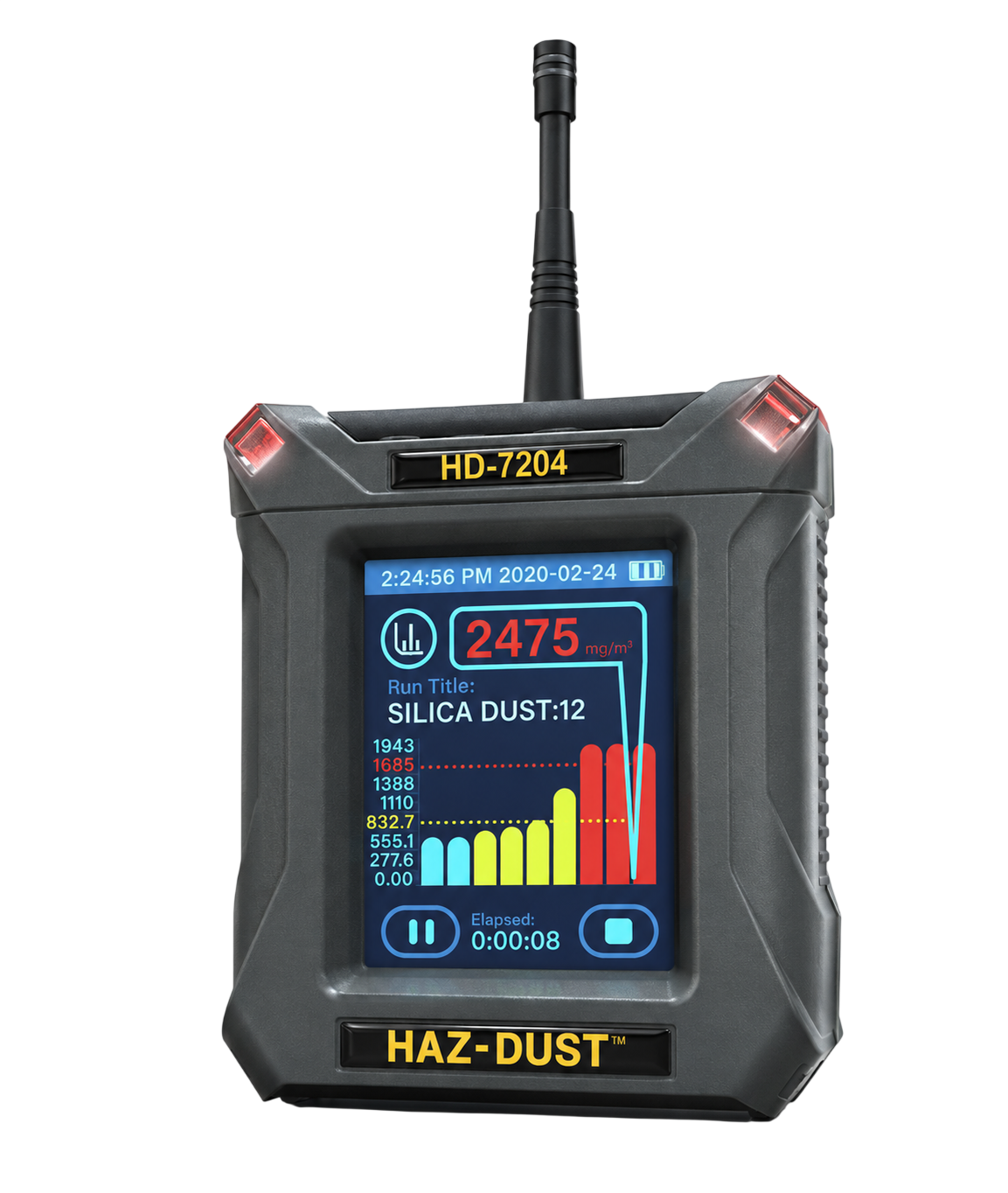

Display: Touch color display
Weatherproof Enclosure
Digital Output: Micro-USB
Alarm Output: 90 db at 3 ft
Battery: Lithium Ion
Charge Time: 3 hours
Operating Time: 22+ hours @ 2LPM with IOM and no filter
Operating Temp: 0°C – 50°C
Instrument Weight : 1.14lbs
Sensor Weight: 0.6lbs
Instrument Dimensions: 3.5″ x 2.25″ x 4.75″
Sensor Dimensions : 1.75″ x 1.5″
